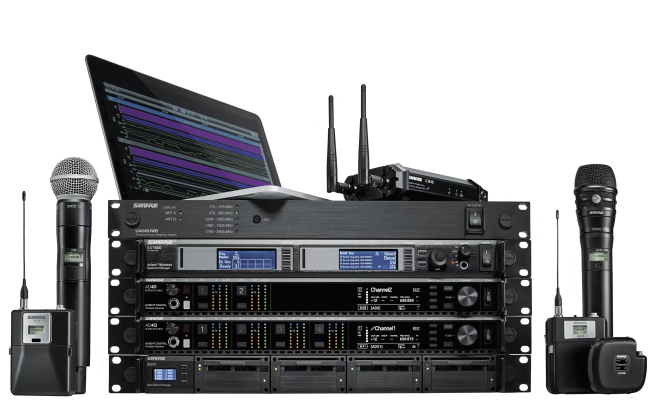

Shure Axient Digital
Clarity and Flexibility. Unmatched.
RF Protection
Axient Digital excels in delivering outstanding signal quality, even in the most congested environments. It ensures maximum stability, range, and clarity, offering uncompromising audio every time, anywhere.
- Next-Generation Digital Radio & Channel Quality Metering: A high-performance modulation scheme with patent-pending technology provides unmatched signal stability. The five-segment Channel Quality meter enables real-time RF signal-to-noise analysis and operating range assessment.
- True Digital Diversity: By combining two discrete RF signals per receiver channel with a quality-based algorithm, Axient Digital defends against multipath interference and RF anomalies.
- Quadversity™ Technology: This patented feature assigns four antenna inputs to a single channel, extending coverage, creating separate zones, and enhancing resistance to multipath interference and RF noise.
- Wide Tuning Bandwidth: Up to 184 MHz across all receivers and transmitters simplifies inventory management while providing expansive spectrum coverage.
- Spectral Efficiency: The High-Density transmission mode supports up to 47 active channels per 6 MHz TV band (or 63 channels per 8 MHz) without compromising audio quality.
- Optimized Operating Range: Selectable transmission modes and power levels ensure resilience, artifact-free muting, and fast signal recovery.
- Frequency Diversity: Dual identical signals on independent frequencies ensure uninterrupted audio, with automatic switchover if interference occurs.
- Interference Detection & Avoidance: Real-time monitoring via the AXT600 Spectrum Manager allows engineers to manually or automatically switch to a clear backup frequency.
Unparalleled Audio Quality
Axient Digital redefines RF and audio performance with ultra-low latency, transparent frequency response, and wide dynamic range for dependable, true Shure sound.
- Ultra-Low Latency: A lightning-fast 2 ms (or 2.9 ms in High-Density mode) guarantees seamless, cohesive sound.
- Transparent Sound: A flat frequency response from 20 Hz to 20 kHz ensures accurate audio reproduction.
- Encryption: AES 256-bit encryption secures every transmission.
- Dynamic Range: An impressive >120 dB dynamic range delivers superior signal-to-noise performance.
- Digital Outputs: Configurable Dante™ and AES67 ports allow flexible, pristine digital audio transmission.
Command & Control
Axient Digital offers unmatched control through advanced tools, apps, and monitoring features.
- Wireless Workbench® & ShurePlus™ Channels App: Gain total control with spectrum plotting, frequency coordination, and live monitoring on desktop or mobile devices.
- ShowLink® Remote Control: Engineers can remotely adjust transmitter settings in real-time via a robust 2.4 GHz connection.
- Dante™ Cue & Browse: Easily monitor all Axient Digital channels or any Dante-enabled device with a single button.
- Networked Charging: Smart batteries and chargers provide detailed runtime and charging status, accessible remotely.
Axient Digital features a shared receiver platform compatible with both AD and ADX transmitters, including the innovative micro-bodypack (ADX1M). These scalable wireless systems deliver exceptional sound for any application or setting.
The user manual can be found here.
