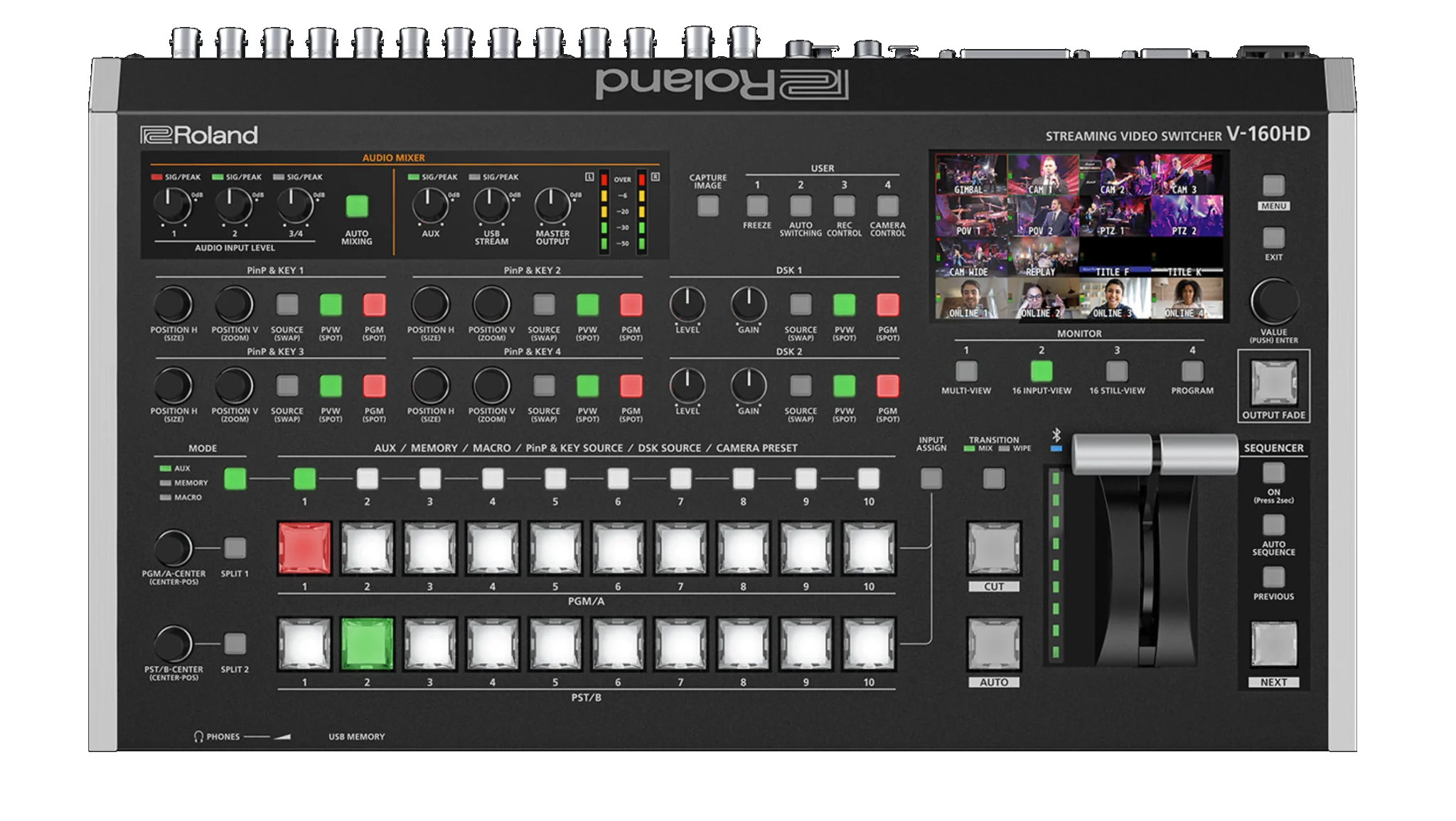

Roland V-160HD Video Switcher
Roland V-160HD rental in Las Vegas for live events and hybrid productions.
Bring cameras, presentation sources, program feeds, and online audiences together from one compact control surface. The V-160HD combines SDI and HDMI switching, USB-C streaming, audio mixing, and show automation.
Built for live production
One switcher, many destinations.
Route a show to screens, records, and remote audiences while keeping preview and auxiliary feeds under control.
01 · Inputs
Connect diverse sources
Eight 3G-SDI and eight HDMI inputs handle cameras, playback, and laptops. All inputs include frame-rate conversion; HDMI inputs 5–8 also provide real-time scaling.
02 · Outputs
Feed the room and the stream
Three SDI and three HDMI outputs support program, preview, auxiliary, and multiview assignments. A USB-C output connects to a computer for Full HD streaming.
03 · Show control
Stay ready for the next cue
Preset memories, macros, and a sequencer streamline repeatable changes. Integrated PTZ camera control and wired or wireless tally support complex productions.
Technical overview
Video, audio, and control.
The key connections and capabilities to plan your signal flow. See the Roland reference manual for complete format and connector tables.
Video inputs and outputs
- Eight 3G-SDI inputs and eight HDMI inputs
- Frame-rate conversion on all 16 inputs; real-time scalers on four HDMI inputs
- Three SDI outputs, three HDMI outputs, and one USB-C streaming output
- Assignable program, sub-program, preview, auxiliary, DSK, and multiview feeds
- Internal still store for up to 16 BMP, JPEG, or PNG images, with PNG alpha support
Mixing and automation
- Eight-layer effects engine with picture-in-picture, keying, and downstream keys
- 40-channel digital audio mixer with channel and master processing
- 30 preset memories, 100 macros, sequencer, and auto switching
- PTZ control for up to 16 compatible cameras
- Control over Bluetooth, USB, RS-232, and LAN; tally/GPIO and reference connections
Planning your rental
Tell us how your show is connected.
Send your signal plan so we can confirm the switcher and accessories for your production.
- Event date, venue, and operating position
- Camera and presentation source count
- SDI, HDMI, multiview, and streaming needs
- Audio feeds, tally, PTZ, and control requirements
Need the right video package?
We’ll confirm availability and the exact equipment included with your rental.
Let’s get your video ready.
Share your date and signal requirements. We’ll help put together the right video package.
